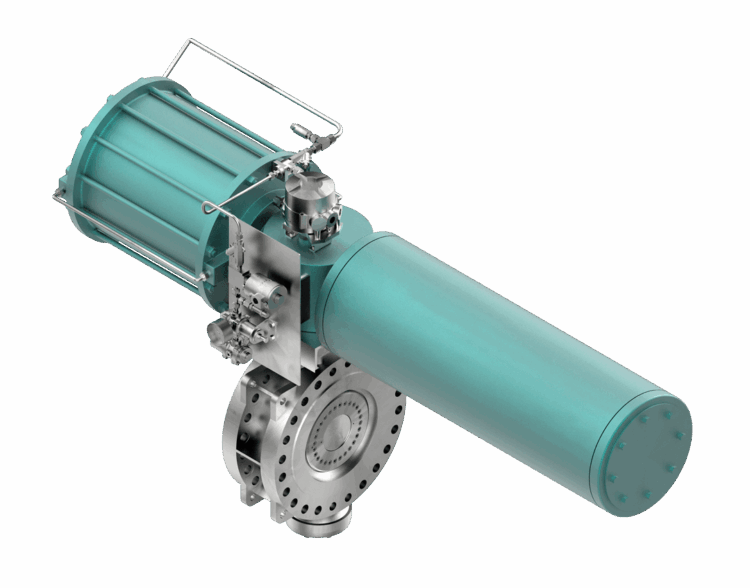

Our triple eccentric butterfly valves are engineered for critical service, delivering bubble-tight shut-off between the laminated seat and hard-faced body surface. Designed for extreme conditions, they operate reliably at temperatures up to 425 °C, depending on body material selection.
Certified:
API609 (API monogram)
CE-PED
SIL (Level 3)
ATEX
Fire safe as per API607
Fugitive Emission test (FET) & Qualification as per ISO 15848-1
Tested:
API598
EN 12266 Part -1
We specialize in meeting stringent material specifications, including NORSOK, and accommodating diverse end-user requirements for both metallic and non-metallic components. With increasingly severe upstream operating conditions, specifications now extend beyond primary valve components to include bolting and operator materials. Through established partnerships with our supply chain, PJ Valves ensures full compliance with any project specification, delivering reliability and integrity in every solution.
Design Standard: API609 Category B, ASME B16.34
• Body with hard facing seat area. Bubble tight shutoff with zero leakage.
• Anti-Static feature & anti-blow out design
• Disc to Stem positive joint with replaceable taper pin with unique locking feature
• Easily renewable seats for less downtime in the field.
• Adjustable stem packing mechanism and in line Gland tightening provision
• Stem Extension
• Manual operator or Gear operated or Actuator
• Interlock
